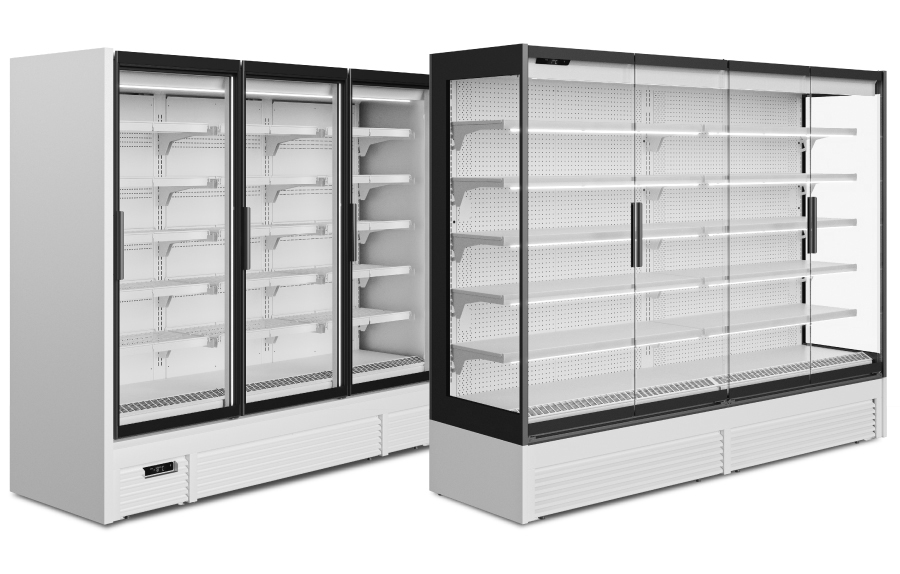

FUTURO

FUTURO

High performance vertical displays for food retail.

FUTURO multi decks range combines high flexibility, optimal product promotion and low energy consumption. Available in 93 cm and 73 cm width models, plug-in or for remote condensing unit installation, is the right choice for chilled and frozen goods.



Models

FROZEN FOOD

-18°…-15 °C (3L1)

MEAT

0°… +4 °C (3M1)

CHARCUTERIE / BEVERAGES / DAIRY PRODUCTS / SUSHI

+1°… +5 °C (3M2)

FRESH PRODUCE / FLOWERS

+1°… +10 °C (3H1)
Refrigeration

CO2 | Glycol | R448 | R449 (remote condensing unit models)
R290 (integral condensing unit models)


Energy efficient JORDAO's FUTURO multi decks.

The vertical display with very low energy consumption.

  • Variable speed fan-assisted refrigeration system with optimized air curtain which reduces the heat input and ensures uniformity of temperature.
  • Freezer models have full vision triple-glazed doors, chilled models have full vision double-glazed doors or night blind (only available for 3M2 and 3H1 models).
  • Panorama double-glazed end panels - chilled models only.
  • High-brightness and energy-efficient LED lighting.

For big and small shops.

  • Available in 93 cm and 73 cm width models to meet shop available space.
  • Décor alignment between positive and negative temperature models.
  • Available as plug-in R290 models and for remote condensing unit installation.


JORDAO FUTURO multi decks available with 73 cm and 93 cm width, asthetic alignment, plug-in or remote.

JORDAO FUTURO chilled multideks, maximum product promotion and visibility.

Greater product display capacity and visibility.

  • 6 display levels.
  • Tilting shelves are 40/57 cm deep shelves  (Slim/Std models).
  • Greater product promotion thanks to the low-height base and the all-glass facing 1,5+ m.
  • Full vision double-glazed doors, frameless and hiding the canopy (chilled models).
  • Undershelf LED lighting to enhance product promotion, optional extra for chilled models.



Ideal for your frozen Produce, Fish, Seafood, Meat, Desserts...

  • 6 display levels for packaged frozen goods.
  • Variable speed fan-assisted refrigeration system with optimized air curtain which reduces the heat input and ensures uniformity of temperature.
  • Full vision triple-glazed glass doors that enable greater product promotion and greater energy saving.
  • Tilting PVC coated wire shelves for optimized product display.
  • LED lighting at the doors.

JORDAO's FUTURO frezer multi deck model.




Chilled fruits and veges multi decks FUTURO by JORDAO.

Fresh Produce and Flowers always fresh and with a good look!

  • 3 display levels, prepared to the most produce crates sizes.
  • Fan assisted refrigeration system with an optimized air curtain which reduces the heat input and ensures uniformity of temperature.
  • Energy-saving double gazed end panels or painted side panels with mirror in the internal side.
  • Sloping shelves with product stopper and tilted canopy mirror for excellent visualization of your fresh produce.
  • Auto-rewinding night blind for overnight energy savings.
  • Canopy LED lighting.

Easy Cleaning and Maintenance

  • Easy access front panel for in loco service operations.
  • Easy cleaning and maintenance of the condensing unit.

FUTURO multi decks removable front panel for easy acess to the condenser unit and cleaning.
